OVERVIEW

Ultra-Precise, High-Dynamics Industrial Laser Tracker Leica Absolute Tracker AT930

Ultra-precise 3D tracking with advanced dynamic performance.

The AT930 provides sub-millimeter accuracy and maintains exceptional stability even during fast part movement. It is suited for aerospace structures, complex assemblies and high-speed automation environments requiring consistent, high-performance metrology.

FEATURES

Ultra-High Accuracy 3D Tracking

The AT930 delivers extremely precise reflector measurements, enabling sub-millimeter accuracy for complex assemblies and tight-tolerance industrial tasks.

MultiTool & PowerLock Integration

Built-in PowerLock ensures automatic re-locking after line-of-sight loss, while MultiTool supports advanced probing, scanning heads, and accessory workflows.

Real-Time Dynamic Performance

Designed for rapid motion tracking, it captures fast-moving targets with exceptional stability—ideal for automated production, robotics, and high-speed inspection.

Rugged & Mobile Design

Featuring IP54 protection, hot-swap batteries, and wireless connectivity, the AT930 provides high portability and reliable operation in demanding field conditions.

Portable
Portable
Accurate
Accurate
Fast Accuracy
Fast Accuracy
Easy Operation
Easy Operation
Fast Accuracy
Fast Accuracy

TECHNICAL DATA

SpecificationValue
Measurement Type3D / 6D reflector-based
Working RangeUp to 160 m
3D Accuracy (MPE)±(15 µm + 6 µm/m)
6DoF ProbingLeica T-Probe compatible
Dynamic TrackingYes
ProtectionIP54
Weight~14–16 kg

AREA OF USE

The ATS930 is used in many critical industrial applications

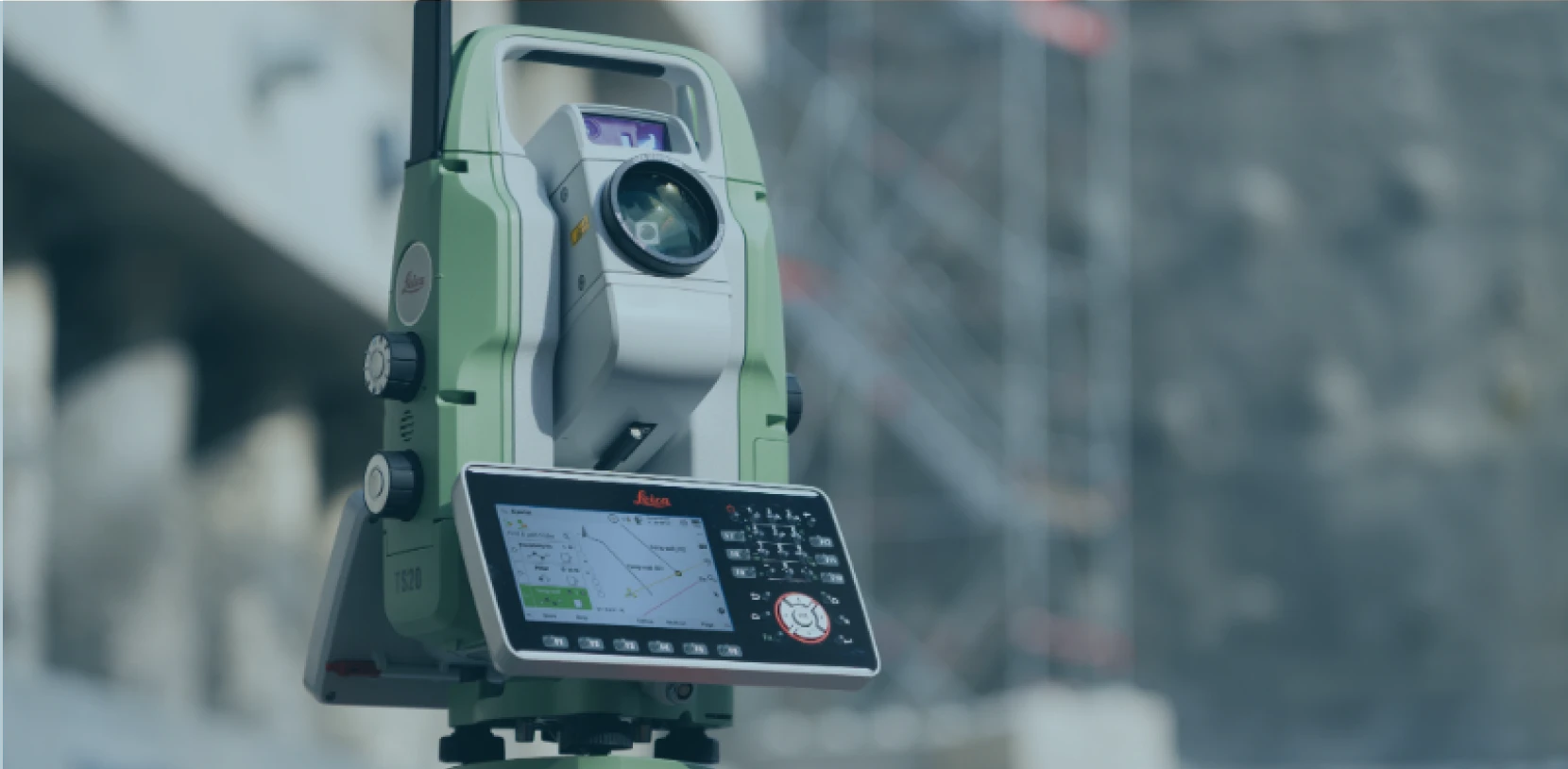

Construction
Construction
Construction

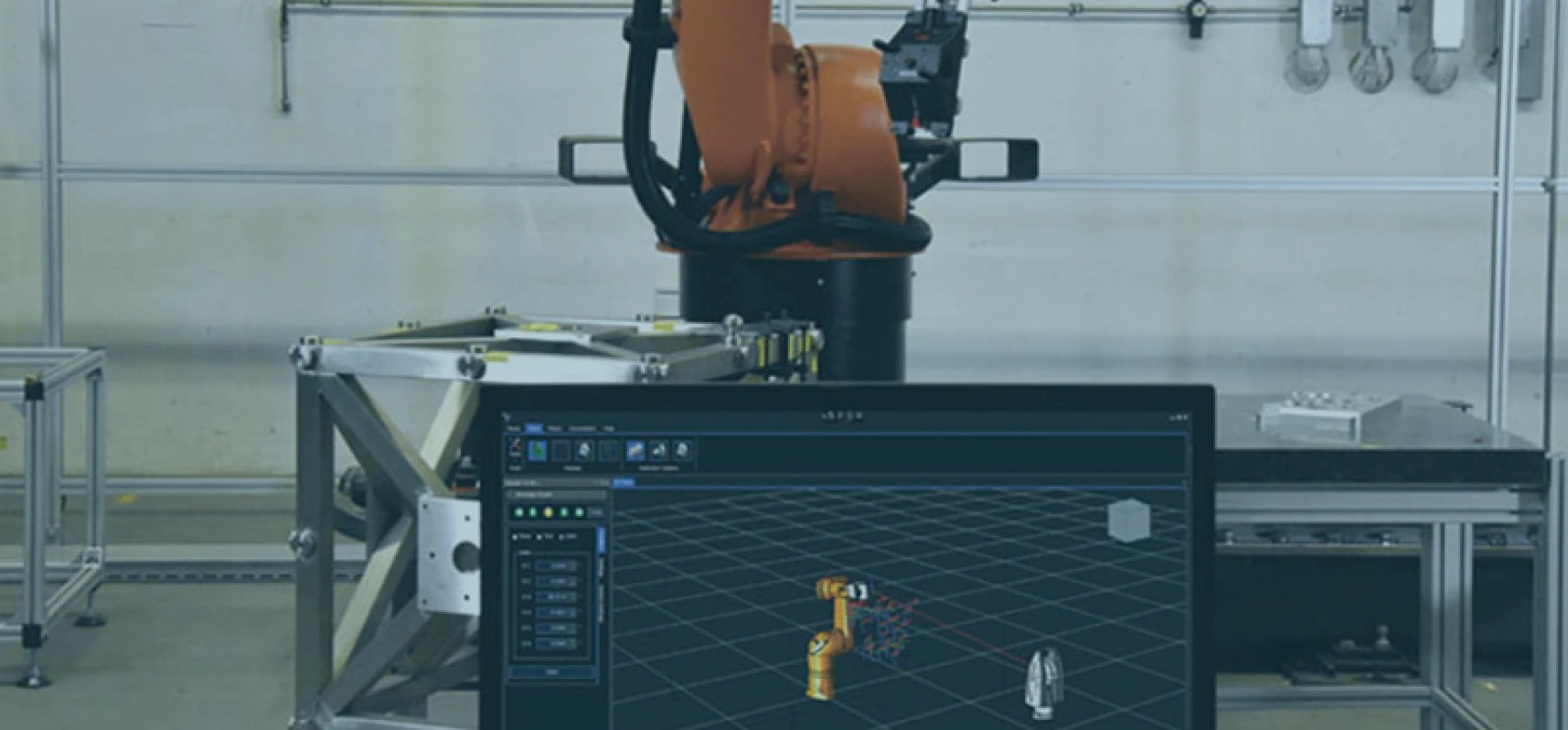

Education & Research
Education & Research
Education & Research

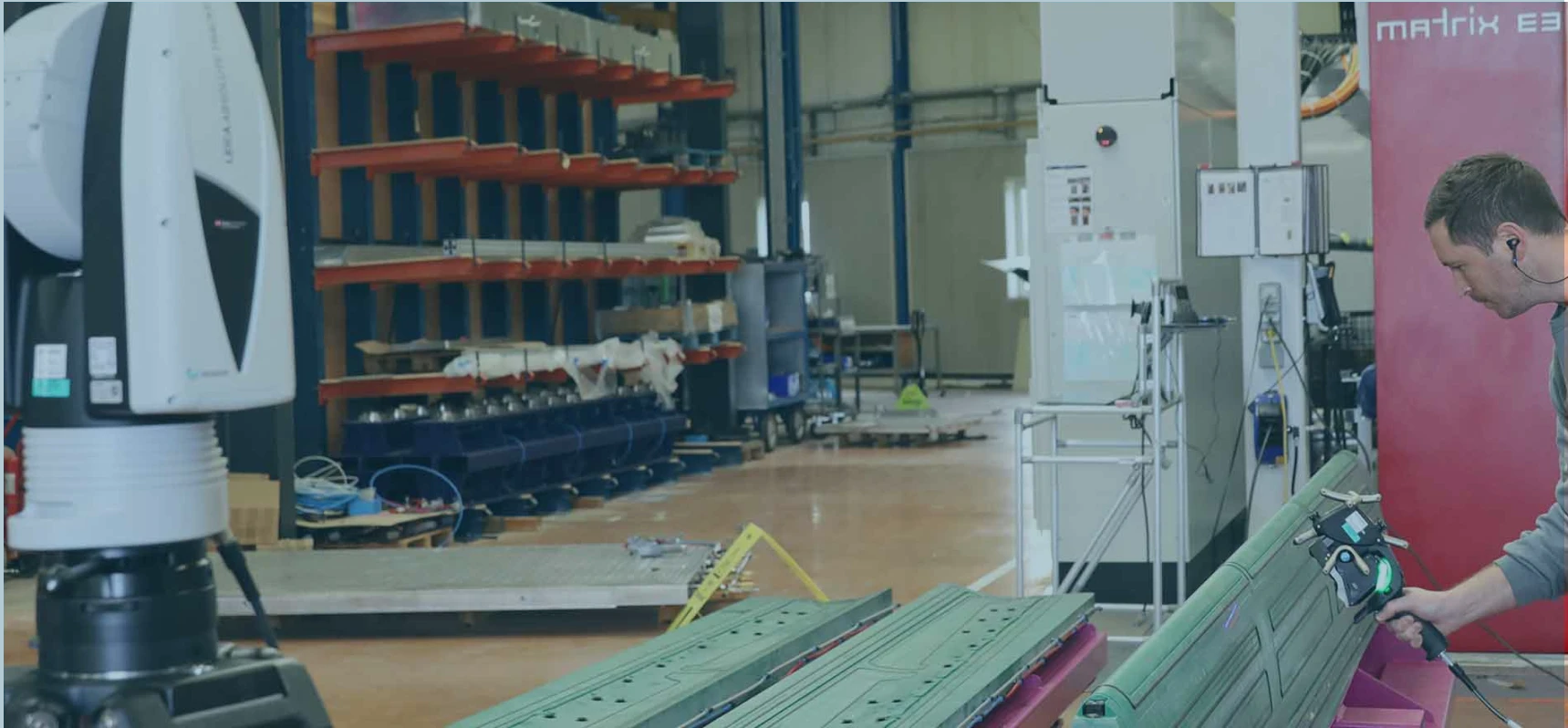

Aerospace
Aerospace
Aerospace
